フーリエ級数展開

f( t+T) = f(t)

$f(t) = a_0+ \sum_{n=1}^{\infty}(a_n \cos n\omega t + b_n \sin n\omega t)$

ここで、

$a_{0} = \frac{1}{T}\int_0^{T} f(t) dt$

$a_{n} = \frac{2}{T}\int_0^{T} f(t)\cos n\omega t dt$ $n=1,2,\cdots$

$b_{n} = \frac{2}{T}\int_0^{T} f(t)\sin n\omega t dt$ $n=1,2,\cdots$

奇関数

-f(t) = f(-t) 奇関数

a_0 = a_n = 0
$b_{n} = \frac{4}{T}\int_0^{\frac{T}{2}} f(t)\sin n\omega t dt$ $n=1,2,\cdots$

偶関数

f(t) = f(-t) 偶関数

$a_0 = \frac{2}{T}\int_0^{\frac{T}{2}} f(t) dt$
$a_{1} = \frac{4}{T}\int_0^{\frac{T}{2}} f(t)\cos n\omega t dt$ $n=1,2,\cdots$

正弦波

1Hzの正弦波を5周期分
サンプリング周期   1 [ms]
サンプリング周波数 1 [kHz]
データ総数         5001
基本周波数         0.2[Hz]

$y(t) = \sin(2\pi f t) = \sin(2\pi t)$

Matlabソース

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% 正弦波形を表示
%                   programming by embedded.samurai
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
echo off
clear all
close all

%サンプリング周期 1[ms]
dx=1e-3;
%サンプリング周波数 1kHz
dfs=1/dx
% xの範囲は 0から0.001単位で5まで
x=[0:dx:5];

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
subplot(2,1,1);
f=1; %1[Hz]
y1=sin(2*pi*f*x);
xx = x/pi;

plot(x,y1,'r-','linewidth',2);

% 文字の大きさ、線の太さの設定
set(gca,'LineWidth',2,...,
'FontSize',15);

xlabel('Time[s]','Fontsize',20,'FontName','Century');
ylabel('Amplitude','Fontsize',20,'FontName','Century');

% x-y範囲
axis([-Inf Inf -Inf Inf]);
grid on
hold on;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
subplot(2,1,2);

%データ総数
[gyo N]=size(x)

%基本周波数
df=dfs/N

%FFTの結果は複素数である
fftdata1 = fft(y1)';

%FFTの絶対値を求める
power1=abs(fftdata1).^2;

%離散周波数を作る
freq = [0:N-1]'*df;

stem(freq,power1,'r-','linewidth',3);
hold on
grid on

axis([0 5  0 Inf]);

set(gca,'LineWidth',2,...,
'FontSize',15);

xlabel('Frequency[Hz]','Fontsize',20,'FontName','Century');
ylabel('Amplitude','Fontsize',20,'FontName','Century');

print -djpeg sinwave_f.jpg

インパルス信号

サンプリング周期   1 [ms]
サンプリング周波数 1 [kHz]
データ総数         5001
基本周波数         0.2[Hz]

インパルス信号とは、

$\LARGE y(t)=\{1, t=0\\0, t \neq 0$

のように表される信号である。
インパルス信号を周波数に変換すると図のようにすべての周波数帯において
周波数が広がっていることが分かる。

インパルス信号はものすごく大事である。
なぜなら全ての周波数を含む信号だからである。

全ての周波数を信号が含むことができれば、ある媒質の周波数応答
つまり何Hzの信号は反射し、何Hzの信号は透過するかといったことを
調べることができるようになる。

例えば,
入射波 $E_{inc}(t)$ をインパルス信号とし、
$E_{ref}(t)$ を反射した信号としたとき、
それらをフーリエ変換し,

$|\Gamma(\omega)| = \frac{|E_{ref}(\omega)|}{|E_{inc}(\omega)|}$

とすると周波数全域に対しての反射係数を求めることができる。

しかしながら理想的なインパルス信号を実世界で作ることは不可能なので
実際には、周波数を広く含む信号を用いて反射係数を求めるのにはガウスパルスなどが使われる。

Matlabソース　fourie_impulsu.m

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% インパルス波形を表示
%                   programming by embedded.samurai
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
echo off
clear all
close all

%サンプリング周期 1[ms]
dx=1e-3;
dfs=1/dx
% xの範囲は 0から0.001単位で5まで
x=[0:dx:5];
%データ総数
[gyo N]=size(x)

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
subplot(2,1,1);

% インパルス信号を作る
y1=[1;zeros(N-1,1)];
plot(x,y1,'r-','linewidth',5);

% 文字の大きさ、線の太さの設定
set(gca,'LineWidth',2,...,
'FontSize',15);

xlabel('Time[s]','Fontsize',20,'FontName','Century');
ylabel('Amplitude','Fontsize',20,'FontName','Century');

% x-y範囲
axis([-Inf Inf -Inf Inf]);
grid on
hold on;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
subplot(2,1,2);

%サンプリング周波数 1kHz
dfs=1/dx;

%データ総数
[gyo N]=size(x)

%基本周波数
df=dfs/N

%FFTの結果は複素数である
fftdata1 = fft(y1)';

%FFTの絶対値を求める
power1=abs(fftdata1).^2;

%離散周波数を作る
freq = [0:N-1]'*df;

plot(freq,power1,'m-','linewidth',5);
hold on
grid on

axis([0 dfs/2  0 Inf]);

set(gca,'LineWidth',2,...,
'FontSize',15);

xlabel('Frequency[Hz]','Fontsize',20,'FontName','Century');
ylabel('Amplitude','Fontsize',20,'FontName','Century');

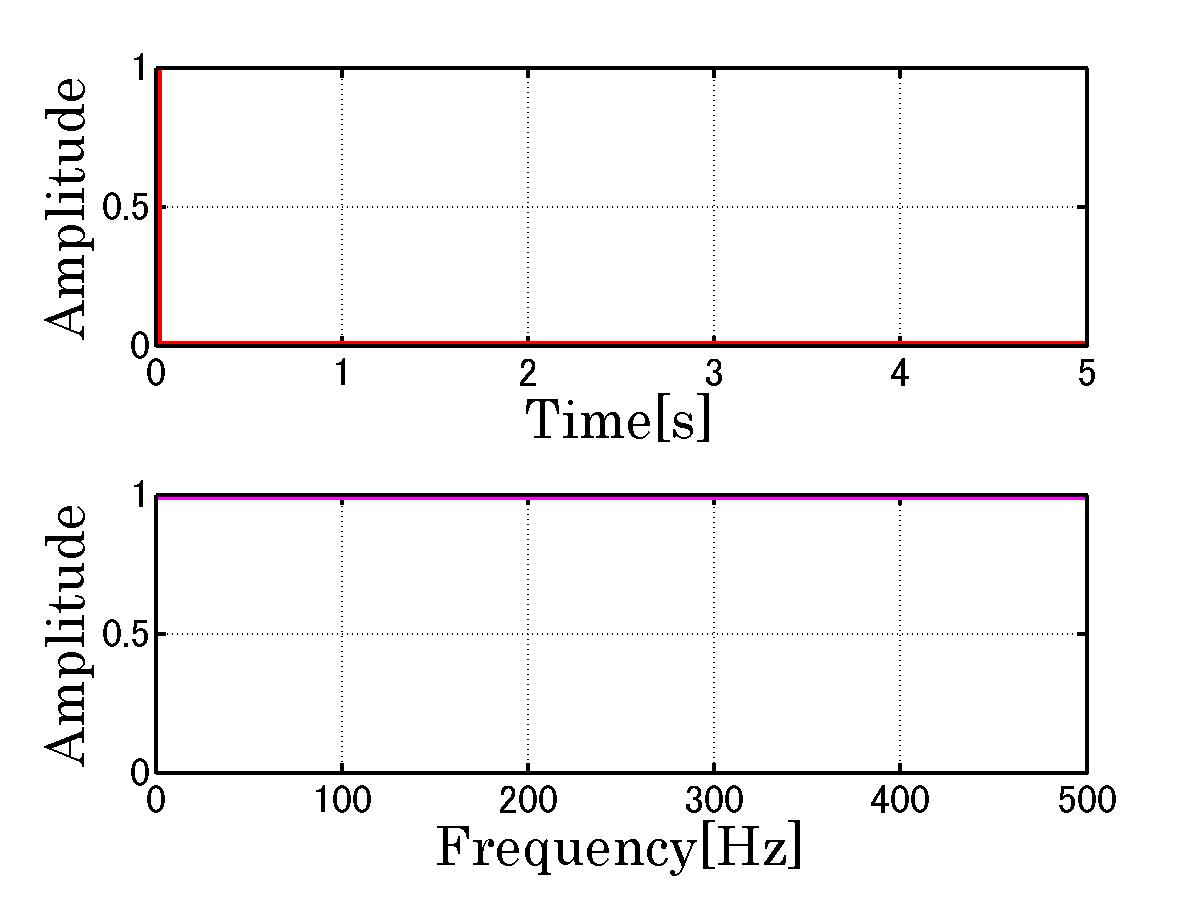

print -djpeg impulsu_wave_f.jpg

//******************************************************

三角波

Matlabソース

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% 三角波形を表示
%             programming by embedded.samurai
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
echo off
clear all
close all

%サンプリング周期 1[ms]
dx=1e-3;
% xの範囲は -pi/2から0.001単位で3piまで
x=[0:dx:3*pi];
xx = x/pi;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% n=1のとき
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
figure(1);

y1=0;
for m=1:1:1
 y=(4/m)*(-1)^(m+1)*sin(m.*x);
 y1=y1+y;
end

plot(xx,y1/pi,'r-','linewidth',3);
hold on;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% n=10のとき
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
y2=0;
for m=1:1:10
 y=(4/m)*(-1)^(m+1)*sin(m.*x);
 y2=y2+y;
end

plot(xx,y2/pi,'g-','linewidth',3);
hold on;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% n=100のとき
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
y3=0;
for m=1:1:100
 y=(4/m)*(-1)^(m+1)*sin(m.*x);
 y3=y3+y;
end

plot(xx,y3/pi,'m-','linewidth',3);
hold on;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% 理想パルス
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
data=[];

for n=x
 if (n < pi)
   y=2*n;
   data=[data,y];
 elseif (n >= pi) && (n <= 3*pi)
   y=2*n -4*pi;
   data=[data,y];
 end
end

plot(xx,data/pi,'b-','linewidth',3);
hold on;

% xラベルとその文字の大きさ、線の太さの設定
str1={'-3p','-2p','-p','0','p','2p','3p'}
set(gca,'FontName','symbol','xtick',[-3:1:3],'xticklabel',str1)

str2={'-3p','-2p','-p','0','p','2p','3p'}
set(gca,'FontName','symbol','ytick',[-3:1:3],'yticklabel',str2)

set(gca,'LineWidth',2,'FontSize',18)

% x-y範囲
axis([-Inf Inf -Inf Inf]);
grid on

% xラベル、yラベル
xlabel('Positon t','Fontsize',20,'FontName','Century');
ylabel('pulsu wave y(t)','Fontsize',20,'FontName','Century')

% キャプション
h=legend('n=1',...,
'n=10',...,
'n=100',...,
'ideal triangle wave',...,
1);
set(h,'FontSize',20,'FontName','Century');

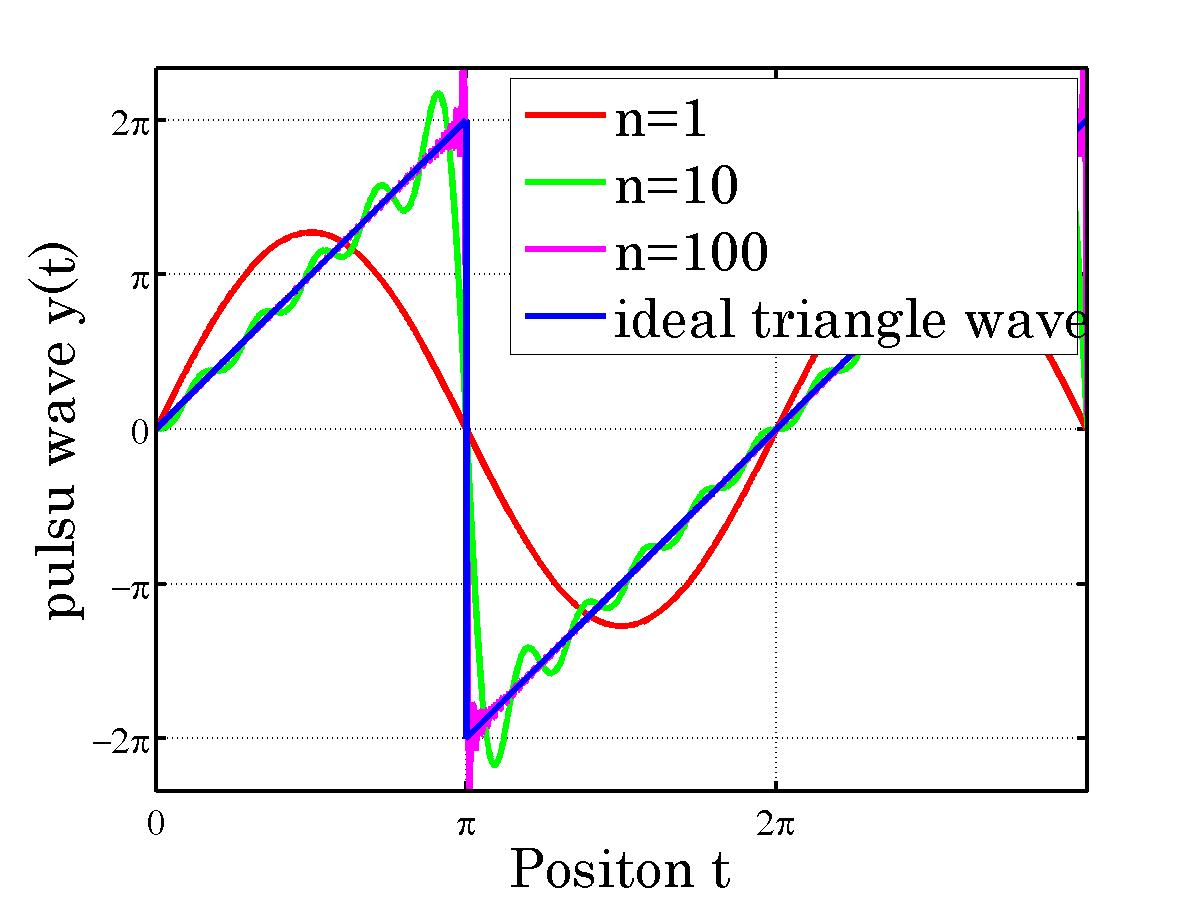

print -djpeg sankakuwave_t.jpg

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
figure(2);

%サンプリング周波数 1kHz
df=1/dx
%xの数 7854
[gyo retu]=size(x)

%基本周波数 0.1273[Hz]
bf=df/retu

%FFTの結果は複素数である
fftdata1 = fft(y1)';
fftdata2 = fft(y2)';
fftdata3 = fft(y3)';
fftdata4 = fft(data)';

%FFTの絶対値を求める
power1=abs(fftdata1).^2;
power2=abs(fftdata2).^2;
power3=abs(fftdata3).^2;
power4=abs(fftdata4).^2;

%離散周波数を作る
freq = [0:retu-1]'*bf

plot(freq,power1,'r-','linewidth',3);
hold on
plot(freq,power2,'g-','linewidth',3);
hold on
plot(freq,power3,'m+--','linewidth',2);
hold on
plot(freq,power4,'bo-','linewidth',1);
hold on

axis([0 1  0 Inf]);

set(gca,'LineWidth',2,...,
'FontSize',15);

xlabel('Frequency[Hz]','Fontsize',20,'FontName','Century');
ylabel('Normalize','Fontsize',20,'FontName','Century');

% キャプション
h=legend('n=1',...,
'n=10',...,
'n=100',...,
'ideal triangle wave',...,
1);
set(h,'FontSize',20,'FontName','Century');

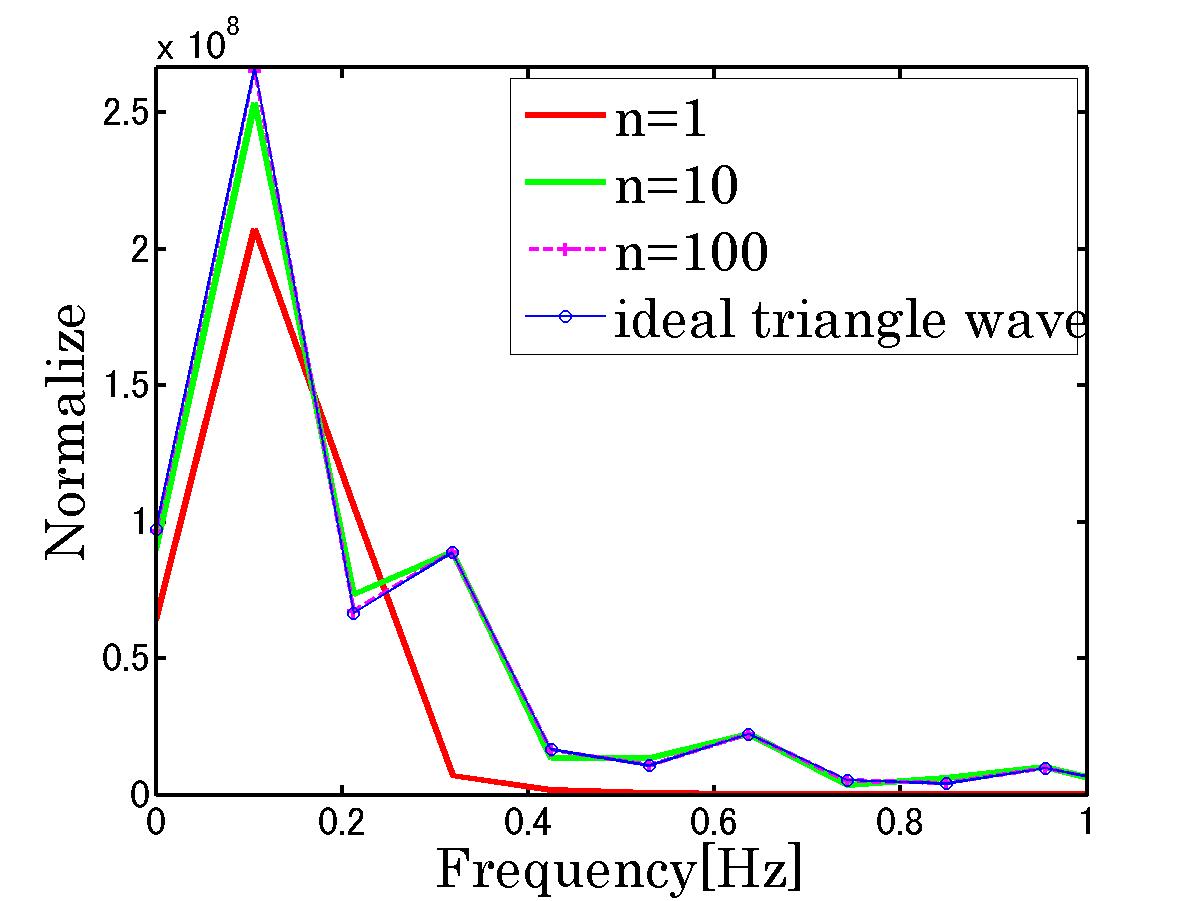

print -djpeg sankakuwave_f.jpg

フーリエ展開

■問い
f(x) = 2x を $0 \lt x \lt \pi$ 　なる区間でフーリエ展開する。

■解答
f(x) = -f(-x) 奇関数

$a_{0} = a_{n} = 0$

$f(x) = \sum_{n=1}^{\infty}(b_n \sin n x)$

$b_{n} = \frac{4}{T}\int_0^{\frac{T}{2}} f(t)\sin n x dx$ $n=1,2,\cdots$

ここで $T = 2 \pi$ なので

$b_{n} = \frac{2}{\pi}\int_0^{\pi} f(t)\sin n x dx$ $n=1,2,\cdots$

$= \frac{2}{\pi}\int_0^{\pi} 2x \sin n x dx$
$= \frac{4}{\pi}\int_0^{\pi} x \sin n x dx$
$= \frac{4}{\pi}\int_0^{\pi} x (-\frac{1}{n} \cos n x)' dx$
$= \frac{4}{\pi}\{ \[-\frac{x}{n} \cos nx\]^{\pi}_{0} + \int_0^{\pi}(\frac{1}{n} \cos n x) dx \}$

$= \frac{4}{\pi}\{ -\frac{\pi}{n} \cos n \pi + \frac{1}{n}\[\frac{1}{n} \sin n x \]^{\pi}_{0} \}$
$= \frac{4}{\pi}\{ -\frac{\pi}{n} \cos n \pi + \frac{1}{n^2} \sin n \pi \}$

$= -\frac{4}{n} \cos n \pi + \frac{4}{n^2 \pi} \sin n \pi$

$= \frac{4}{n} \[ \frac{ \sin n \p}{n \pi} - \cos n \pi \]$

ここで第1項は0しかとらない。第2項は、-1,1,-1,1..となるが先頭に-があるため 1,-1,1,-1

$= \frac{4}{n} \cdot (-1)^{(n+1)}$

$f(x) = \sum_{n=1}^{\infty}(\frac{4}{n} \cdot (-1)^{(n+1)} \sin n x)$

これはMalabソース

y=(4/m)*(-1)^(m+1)*sin(m.*x);

と同じになる。

方形波

Matlabソース

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% パルス波形を表示
%                     programming by embedded samurai
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
echo off
clear all
close all

%サンプリング周期 1[ms]
dx=1e-3;
% xの範囲は -pi/2から0.001単位で2piまで
x=[-pi/2:dx:2*pi];
xx = x/pi;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% 注意！
% cos(n*x) n=omega
% n=omega=1,2,..,n である。
% omega = 2*pi*f = 1,2,...,n の意味なので
% 周波数的には、
% f= 1/2pi,2/2pi,3/2pi,...,n
%  = 0.1592[Hz],0.3183[Hz],0.4775[Hz],0.6366[Hz],
%  = 0.7958[Hz],0.9549[Hz],1.1141[Hz],....,n
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% 1[Hz]を表示
% ここはテスト
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
figure(1);

ty1=sin(2*pi*1*x);

%1[Hz]に近い
ty2=sin(6.2832*x);

plot(xx,ty1,'r-','linewidth',2);
hold on;
plot(xx,ty2,'b--','linewidth',3);

% xラベルとその文字の大きさ、線の太さの設定
str={'-p/2','0','p/2','p','3p/2','2p'}
set(gca,'FontName','symbol','xtick',[-0.5:.5:2],'xticklabel',str)
set(gca,'LineWidth',2,'FontSize',18)

% x-y範囲
axis([-Inf Inf -Inf Inf]);
grid on

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% n=1のとき
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
figure(2);

y1=0;
for m=0:1:0
 y=(4/pi)*(1/(2*m+1))*(-1)^m*cos((2*m+1).*x);
 y1=y1+y;
end

plot(xx,y1,'r-','linewidth',3);
hold on;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% n=10のとき
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
y2=0;
for m=0:1:10
 y=(4/pi)*(1/(2*m+1))*(-1)^m*cos((2*m+1).*x);
 y2=y2+y;
end

plot(xx,y2,'g-','linewidth',3);
hold on;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% n=100のとき
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
y3=0;
for m=0:1:100
 y=(4/pi)*(1/(2*m+1))*(-1)^m*cos((2*m+1).*x);
 y3=y3+y;
end

plot(xx,y3,'m-','linewidth',3);
hold on;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% 理想パルス
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
data=[];

for n=x
 if (n < pi/2)
   y=1;
   data=[data,y];
 elseif (n >= pi/2) && (n <= 3*pi/2)
   y=-1;
   data=[data,y];
 elseif ( n > 3*pi/2)
  y=1;
  data=[data,y];
 end
end

plot(xx,data,'b-','linewidth',3);
hold on;

% xラベルとその文字の大きさ、線の太さの設定
str={'-p/2','0','p/2','p','3p/2','2p'}
set(gca,'FontName','symbol','xtick',[-0.5:.5:2],'xticklabel',str)
set(gca,'LineWidth',2,'FontSize',18)

% x-y範囲
axis([-Inf Inf -Inf Inf]);
grid on

% xラベル、yラベル
xlabel('Positon t','Fontsize',20,'FontName','Century');
ylabel('pulsu wave y(t)','Fontsize',20,'FontName','Century')

% キャプション
h=legend('n=1',...,
'n=10',...,
'n=100',...,
'ideal pulsu',...,
1);
set(h,'FontSize',20,'FontName','Century');

print -djpeg pulsuwave_t.jpeg

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
figure(3);

%サンプリング周波数 1kHz
df=1/dx
%xの数 7854
[gyo retu]=size(x)

%基本周波数 0.1273[Hz]
bf=df/retu

%FFTの結果は複素数である
fftdata1 = fft(y1)';
fftdata2 = fft(y2)';
fftdata3 = fft(y3)';
fftdata4 = fft(data)';

%FFTの絶対値を求める
power1=abs(fftdata1).^2;
power2=abs(fftdata2).^2;
power3=abs(fftdata3).^2;
power4=abs(fftdata4).^2;

%離散周波数を作る
freq = [0:retu-1]'*bf

plot(freq,power1,'r-','linewidth',3);
hold on
plot(freq,power2,'g-','linewidth',3);
hold on
plot(freq,power3,'m+--','linewidth',2);
hold on
plot(freq,power4,'bo-','linewidth',1);
hold on

axis([0 1  0 Inf]);

set(gca,'LineWidth',2,...,
'FontSize',15);

xlabel('Frequency[Hz]','Fontsize',20,'FontName','Century');
ylabel('Normalize','Fontsize',20,'FontName','Century');

% キャプション
h=legend('n=1',...,
'n=10',...,
'n=100',...,
'ideal pulsu',...,
1);
set(h,'FontSize',20,'FontName','Century');

print -djpeg pulsuwave_f.jpg

Matlabソースの結果

フーリエ展開

■問い
上図をフーリエ展開する

■解答
f(x) = f(-x) 偶関数サインの項 0

$f(x) = -f(x+\pi)$ $a_{0}=0$ a_n は奇数項のみ

$\pi$ だけずれたときは f(x) = -f(x) の奇関数となるから、
偶数のときは奇関数となる。コサインの項が消える。

a_n は奇数項のみ n = 2m+1 (m=0,1,2,3)

$f(x) = \sum_{n=0}^{\infty}(a_n \cos n x)$

$a_{n} = \frac{4}{T}\int_0^{\frac{T}{2}} f(t)\cos n x dx$ $n=0,1,2,\cdots$

ここで $T = 2 \pi$ かつ n=2m+1

$a_{n} = \frac{2}{\pi}\int_0^{\pi} \cos(2m+1) x dx$ $m=0,1,2,\cdots$

$= \frac{2}{\pi}\{ \int_0^{\frac{\pi}{2}} \cos(2m+1)x dx - \int_{\frac{\pi}{2}}^{\pi} \cos(2m+1)x dx\}$

$= \frac{2}{\pi}\{ \[\frac{ \sin(2m+1)x}{(2m+1)} \]^{\frac{\pi}{2}}_{0} - \[\frac{ \sin(2m+1)x}{(2m+1)} \]^{\pi}_{\frac{\pi}{2}} \}$

$= \frac{2}{\pi(2m+1)}\{ \sin(2m+1)\frac{\pi}{2} + \sin(2m+1)\frac{\pi}{2} \}$

$= \frac{4}{\pi(2m+1)}\{ \sin(2m+1)\frac{\pi}{2} \}$

$= \frac{4}{\pi(2m+1)}(-1)^m$

$f(x) = \sum_{n=0}^{\infty}(a_n \cos n x) = \sum_{n=0}^{\infty}\frac{4}{\pi(2m+1)}(-1)^m(\cos (2m+1) x)$

これはMalabソース

 y=(4/pi)*(1/(2*m+1))*(-1)^m*cos((2*m+1).*x);

と同じになる。
